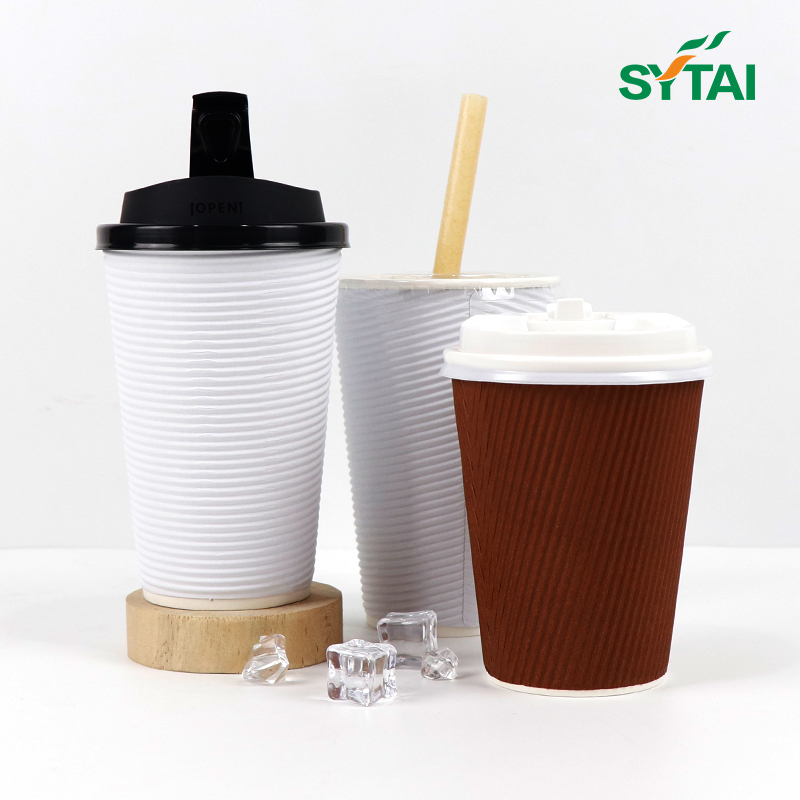

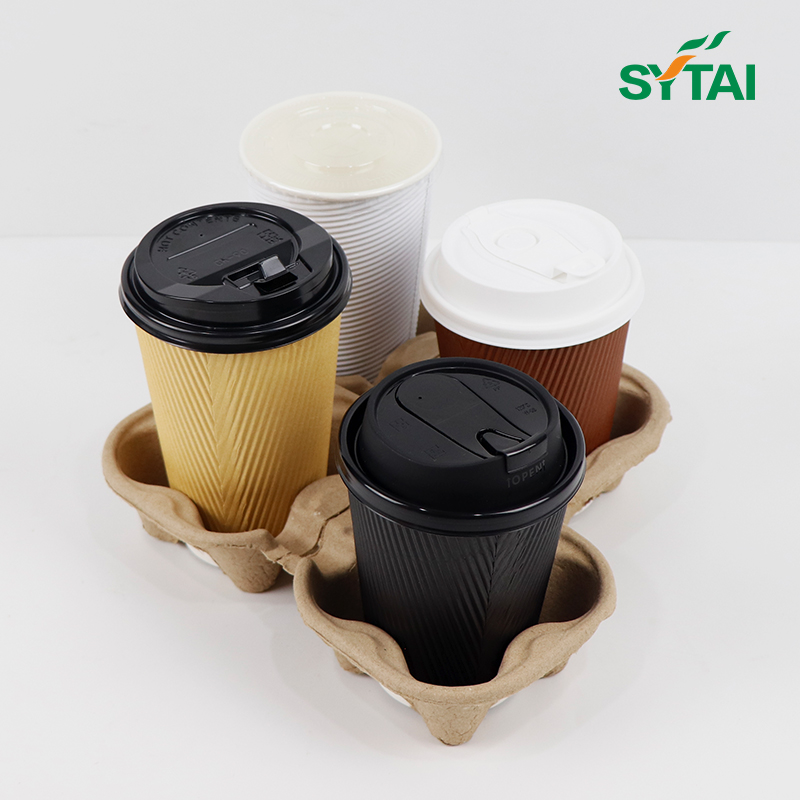

Custom Printed Ripple Wall Paper Cups

Print your logo on 8/12/16/20/22 oz ripple wall coffee cups. 3-ply corrugated body, PE or PLA lining, 7-color flexo, short lead time. Free mock-up.

Quantity

Minimum order quantity:50000pieces

Inquiry now

Custom Ripple Wall Coffee Cups: Product Details

Custom printed paper coffee cups are hot-beverage containers constructed from a

three-layer composite structure: an inner layer of food-grade,

poly-coated paper that comes into direct contact with the beverage;

a middle layer featuring a continuous ripple pattern, which acts as an insulating air gap;

and an outer layer of printed paper designed for brand visibility.
The ripple layer does not touch the liquid; instead, it creates a pocket of trapped air

between the cup wall and the user’s fingers, effectively lengthening the path for heat transfer. As a result,

beverages like coffee, milk tea, or hot chocolate—served at temperatures of 60–70°C—can

be held comfortably by hand, eliminating the need for separate sleeves or"double-cupping."

Standard sizes include 4 oz, 8 oz, 12 oz, 16 oz, and 20 oz,

with rim and base dimensions compatible with industry-standard 80 mm and 90 mm lid systems.
Specifications—such as paper grammage, ripple depth, coating type (PE, water-based, or PLA),

and printing techniques—are tailored to each individual order, rather than relying on a"one-size-fits-all"template.

The true value of these cups lies in their ability to integrate thermal insulation, brand exposure,

and eco-friendly, paper-based construction into a single vessel: retailers save on the cost of sleeves,

brands gain a full-surface canvas for messaging, and the final product remains a recyclable paper cup.

Custom Ripple Wall Coffee Cups: Why a Ripple Structure Can Replace a Coffee Sleeve

🔥Heat Insulation Without Sleeves: The air-gap structure extends the path for heat conduction,

allowing hot drinks (60–70°C) to be held comfortably by hand.

This eliminates the need for separate cup sleeves, streamlining the workflow during peak service hours.
💧Leakage Prevention: The rolled rim and knurled base—the two primary points where leaks can

occur—are sealed using precisely calibrated pressure and temperature settings tailored to

each specific cup model. Every batch undergoes rigorous quality inspection before leaving the factory.
🎨Full-Surface Printing: The entire outer wall serves as a canvas for branding,

unlike single-wall cups where half the surface is often obscured by a sleeve.

Brand names, flavor labels, and promotional information can all be prominently displayed in the primary visual area.
📦High Rigidity and Stable Stacking: The three-layer construction provides superior ring-crush strength,

ensuring the cups remain stable when stacked without collapsing.

This results in lower damage rates during storage and long-distance transport compared to single-wall cups.
♻️Paper-Based Design, Eliminating Plastic/Paper Sleeves: Removing the need for a sleeve reduces both total paper

consumption and procurement complexity. Options for water-based coatings or PLA linings are available,

allowing brands with sustainability goals—such as compostability—to clearly communicate their eco-friendly credentials.

Ripple Wall Paper Cup vs Double Wall

One of the most frequent questions from buyers is:

how should one choose between custom ripple wall coffee cups, double-wall cups, and single-wall cups?
The answer depends on three factors: the serving temperature of the beverage,

whether full-surface (all-over) printing is required, and your budget per cup.

Attribute	Single Wall	Double Wall	Ripple Wall
Structure	One layer of PE-coated paper	Two paper layers, no corrugation between them	Inner cup + corrugated ripple middle layer + printed outer layer
Heat insulation	Low — a sleeve is required for hot drinks	Medium — the gap between two paper layers slows heat transfer	High — the air chambers insulate, no sleeve needed
Printable outer surface	Full surface, but heat passes straight through	Full surface, smooth to the touch	Full surface, but embossed — artwork must be adjusted for the ripple profile
Hand feel	Thin, deforms easily	Thick and firm, flat surface	Noticeably ribbed, non-slip grip
Cost per cup	Lowest	Medium	Highest
Stacked volume	Small	Medium	Large — higher warehousing footprint
Best for	Cold drinks, offices, short drinking windows	Specialty coffee, business hospitality	Chain takeaway, peak-hour service, sleeve-free stores

Custom Ripple Wall Coffee Cups:Application Scenario

Scenario	Recommended Cup Type	Common Sizes	Key Requirements
Chain coffee takeaway	Ripple wall	12 / 16 oz	Sleeve-free serving, fast throughput, consistent branding across stores
Specialty café, dine-in	Double wall	8 / 12 oz	Smooth hand feel, restrained printing, coexists with ceramic ware
Bakery and dessert shops	Ripple wall + double wall	8 / 12 oz	Colour-matched with cake boxes and takeaway paper bags
Office pantry	Single wall	8 oz	Cost first, stable replenishment cycle
Trade shows and brand events	Ripple wall	8 / 12 oz	Short lead time, full-wrap printing of the campaign key visual
Milk tea and cold drinks	Single wall / ripple wall	16 / 20 oz	Lid seal integrity, condensation must not soften the cup body

FAQ:Custom Ripple Wall Coffee Cups

Q1: Can ripple-wall cups be produced in an all-white, unprinted version?
Yes. Plain white ripple-wall cups are our highest-volume product.

They are ideal for businesses that need to stock up quickly before adding custom branding later,

and they also serve as a reliable, always-in-stock option for wholesale clients.

Q2: How is the Minimum Order Quantity (MOQ) determined?
The MOQ is not a fixed number; it depends primarily on the number of printing plates required and

the production batch size for each specific cup size. You can reduce costs by combining multiple sizes into a single order,

as this allows you to share the plate-making expenses. For the most accurate quote, please provide details regarding the cup sizes,

number of printing colors, and your required delivery timeline.

Q3: Can samples be provided for wholesale orders of printed paper coffee cups?
Yes. We can provide physical samples of plain white cups as well as printed mock-ups.

If you require production-grade samples for final approval, these can be arranged separately,

with costs based on the actual plate-making fees and the number of samples requested.

Q4: Can recycling information and material specifications be printed on the cups?
Yes. Recycling symbols, material abbreviations, and details about the lining/coating type

can be printed on the bottom or the side of the cup to comply with the regulations of your target market.

The exact placement will be confirmed during the design phase.

1. Do you have your own factory?

Yes, we are a professional manufacturer. We own a factory in Wuhan City, Hubei Province. Established in 2006, our facility has a massive annual production capacity of over 9 billion pieces.

2. Can I get a sample before placing a bulk order?

Absolutely. We understand the importance of quality control. We have a range of quality samples available with different techniques applied for your reference. You only need to pay the shipping cost to receive them, and we ship to all countries.

3. What can you buy from us?

We offer a comprehensive range of disposable tableware and packaging solutions, including:

Paper Cups & Paper Bowls.
Paper Bags.
Drinking Straws.
Paper Plates
Paper Raw Materials.
Paper Plates
Sugarcane (Bagasse) Tableware.
Disposable Cutlery
Paper Raw Materials
Lids and more.

4. Why should you buy from us instead of other suppliers?

You should choose us because of our advanced manufacturing capabilities and strict quality control. Our factory is equipped with:

Corrugated Paper Machine.
PE and PLA Coating Machines.
Printing Machines (capable of up to 7 colors).
100 High-Speed Forming Machines operating in controlled dust-free environments
Furthermore, we hold international certifications to guarantee our quality and reliability, including ISO 9001/14001/18001, LFGB, BV, SGS, and FSC certificates.

5. Can you print my logo on your paper packaging containers?

Yes, we offer custom printing services. Please notify us formally before production begins. We will first confirm the design and create a sample for your approval to ensure it meets your expectations.

6.What materials are used to produce your products?

We primarily use food-grade materials, including virgin paperboard with PE coating for waterproofing, as well as environmentally friendly PLA (cornstarch) coating. We also offer sugarcane (bagasse) pulp products. All materials are safe for direct food contact.

7.Are your products environmentally friendly or compostable?

Yes, sustainability is a key focus for us. We offer multiple eco-friendly options

Paper products are made from renewable resources and are recyclable.
PLA coated products are industrially compostable.
Sugarcane (Bagasse) products are made from 100% natural agricultural fiber and are both compostable and microwave-safe.
Our FSC certification ensures our paper comes from responsibly managed forests.

Do you provide OEM (Original Equipment Manufacturer) service?

Yes, we strongly support OEM. We can customize not only the logo printing but also the product size, shape, and even packaging design to meet your specific brand needs. Just share your ideas or drawings with us.
